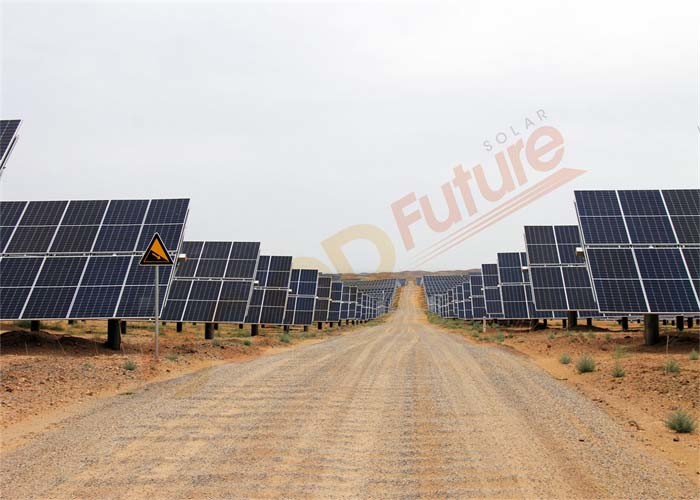

Single Axis Solar PV Tracker Long Lifetime
Working principle:
Single axis solar PV tracker orient the solar panels towards the sun to absorb maximum solar energy throughout the day. Our tracking system is designed to literally follow sun’s position at every minute, hour, and day, manual adjustment is not necessary.
In traditional fixed type plants, the power output follows a bell curve during the day, it gradually increases until peaking at noon, then begin to decrease. However, in single axis solar tracker plant, we get the maximum power from early morning and this output is maintained until late afternoon. Hence, the performance will be increased of approximately 25% as compared to the fixed PV installation.
Functions:
1. System check function
Real-time display of the current working status of the system;
2. Power off protection function
The system data can be saved without loss after power failure.
3. High function of extreme weather monitoring
When encountering extreme weather, the system will automatically judge and execute the corresponding evasive action to protect the safety of the bracket and components;
4. Backtracking function
Reduces shading and maximizes power generation;
5. Night reset function
At night, the components are restored to the initial maximum wind resistance state, and the errors caused by the day's operation are eliminated to ensure the accuracy of the entire tracking system;
Advantages:
1. Compare with the market, after project design and business accounting, the Good future Single Axis Tracker offers fewer foundations for each average MW.
2. Good Future Solar offers different types of tracker controller: with/without Lithium battery or self-power controller. All these just need very easy link and no more operations after installation.
3. The drivers will move the solar panel to slow position automatically at high wind speeds, this will protect the system from over-travel and increased solar system service life. The simple and robust design requires minimum maintenance.
4. High operation reliability.
5. Alarm management fully configurable by customer.
6. Backtracking Algorithm, avoiding shadows and increasing production.
7. Easy integration into the plant’s communications system
Technical Parameters of Single Axis Solar PV Tracker Long Lifetime
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 35% |
| Foundation Options | All foundation types |
| Terrain Adaption | Up to 20% N-S slope |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Cleaning Mode | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
About us:
Good future solar has a professional management team, we have gains rich experiences on the solar power generation, and the designing, manufacturing, commissioning of the single axis tracking system. Our company always values customer’s needs as the highest priority, ready to provides technical support to our customers at any time, to solve their problems in the operation of PV power plant and solar tracking system. With the mission of developing clean energy and protecting the environment, we believe that through close cooperation with domestic and foreign customers, we will continue to innovate in technology and management, and create a bright future of clean energy!
