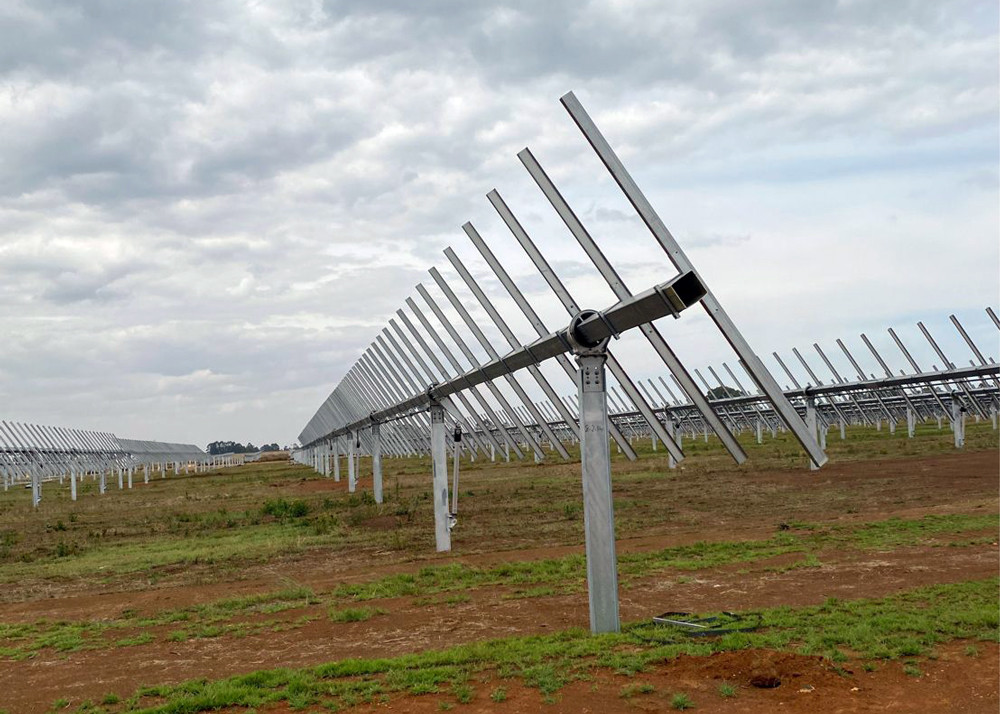

Flat Single Axis Independent Solar Tracking System Solar Sun Tracker
Working principle:
Ground mounting single axis solar tracking system components slew drive solar panel mounting brackets is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).
Functions:
1. Its design is configured with one single set of controller, which ensures point-to-point real-time monitoring, easy to detect fault points in time every time and reduce ouput loss.
2. Excellent compatibility with all the mainstream solar modules available in the industry: framed,frameless and bi-facial. Independent 2V module design, which reduces the quantity of piles and the construction cost significantly.
3. Free obstacles among trackers in N-S direction, easy to maintain and clean.
4. Multi-point drive, within 20 meters length for each tracker in the north-south direction, which greatly reduce the impact of wind torsion to bracket, improve the critical anti-wind capability, avoid the instability that the traditional 2V system may have in extreme weather.
5. Max. gradient difference adaptability in N-S direction up to 15%.
Technical Parameters
| Flat Single Axis Independent Solar Tracking System Solar Sun Tracker |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - +60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
