TCU Control Single Axis Solar Tracker Intelligent Solar Tracking System

Name: TCU Control Single Axis Solar Tracker Intelligent Solar Tracking System
Brand: Good Future Solar
Price: 1 USD

China TCU Control Single Axis Solar Tracker Intelligent Solar Tracking System wholesale

Brand Name : Good Future Solar

Model Number : MG/ZG/YG/JG

Certification : CE/ISO/BV/SGS

Place of Origin : China

MOQ : Negotiate

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000MW per Month

Delivery Time : 30 Working Days after design confirm

Packaging Details : Neutral packing

Product : solar tracking system single axis solar tracker

Driving System : Slew drive for tracker

Operation Temperature : -40℃ - 70℃

String-Powered : Yes

Night Position : Yes

Ground Coverage Ratio : ≥ 25%

Contact Now

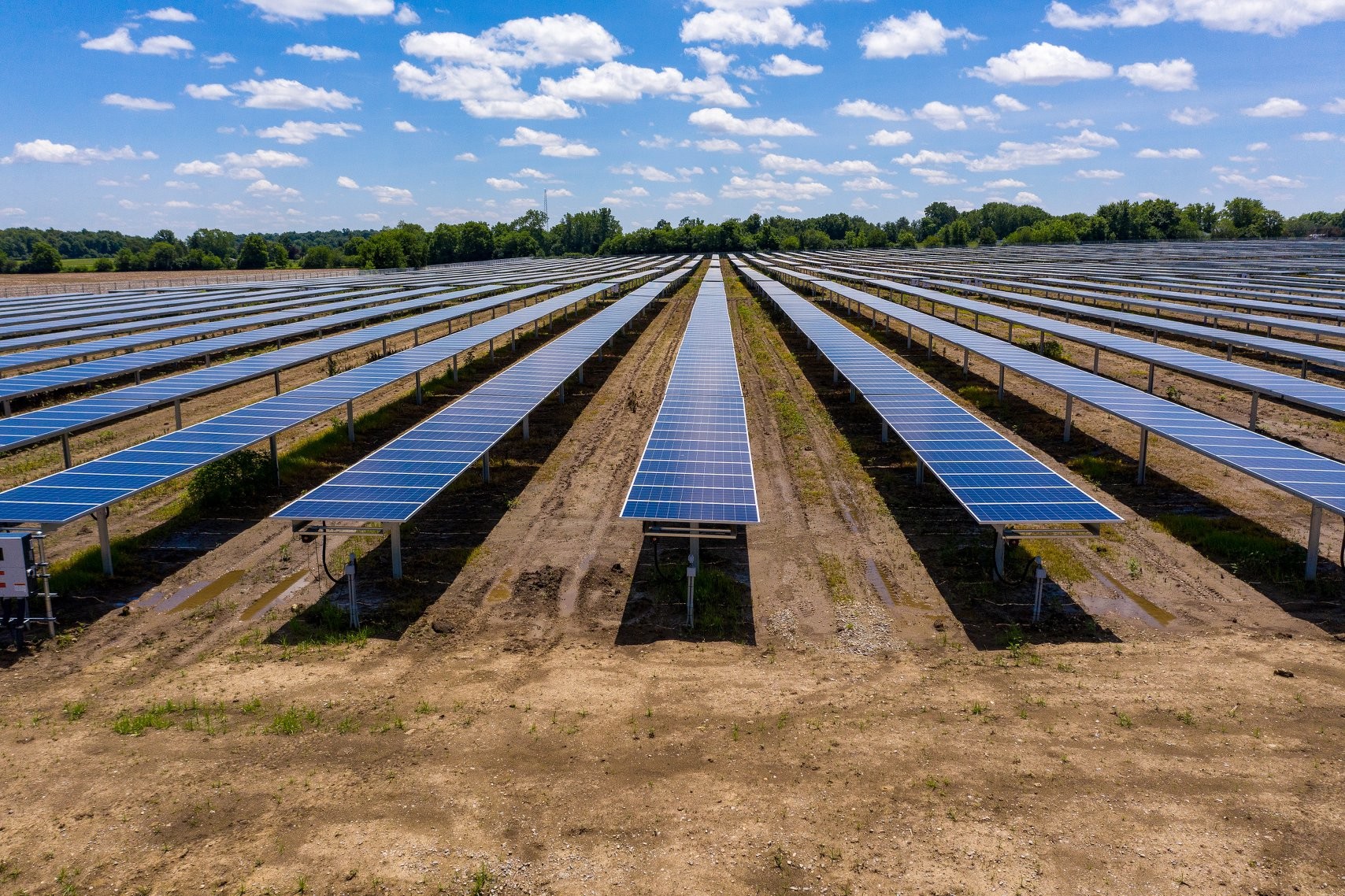

solar tracking system single axis solar tracker

Working principle:
The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun,
combined with high-performance microcontroller (DSP core), making the system accurate
and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time
closed-loop feedback tracking angle, automatic tracking, without human intervention.

Functions:
1. Single row independent drive unit, no connection between row and row, to ensure convenient traffic between square array;
2. Slew drive design, with high transfer efficiency and good environmental adaptability, the drive unit can be maintained free for 25 years;
3. Adopt the form of self-power supply, without external power supply;
4. Independently developed MCU microcomputer control system;
5. Intelligent battery management system (BMS) and automatic alarm functions can ensure the system's long-term reliable operation.

Technical Parameters of single axis solar tracking tracking system

solar tracking system single axis solar tracker
Tracking Range	士 60°
Driving System	Slew drive, 28VDC motor
Modules per Tracker	Max.90 modules per tracker
System Voltage	1000 V or 1500 V
Ground Coverage Ratio	≥ 25%
Power Consumption	0.2-0.5kWh/day
Power Supply Mode	Powered by PV strings, back-up lithium battery
Standard Design Wind Speed	18m/s
Module Supported	All commercially available modules
Operation Temperature	-40℃ - 70℃
Control Algorithm	Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy	≤ 1°
String-Powered	Yes
Backtracking	Yes
Communication Options	LoRa wireless /RS 485 cable
Night Position	Yes

TCU Control Single Axis Solar Tracker Intelligent Solar Tracking System
