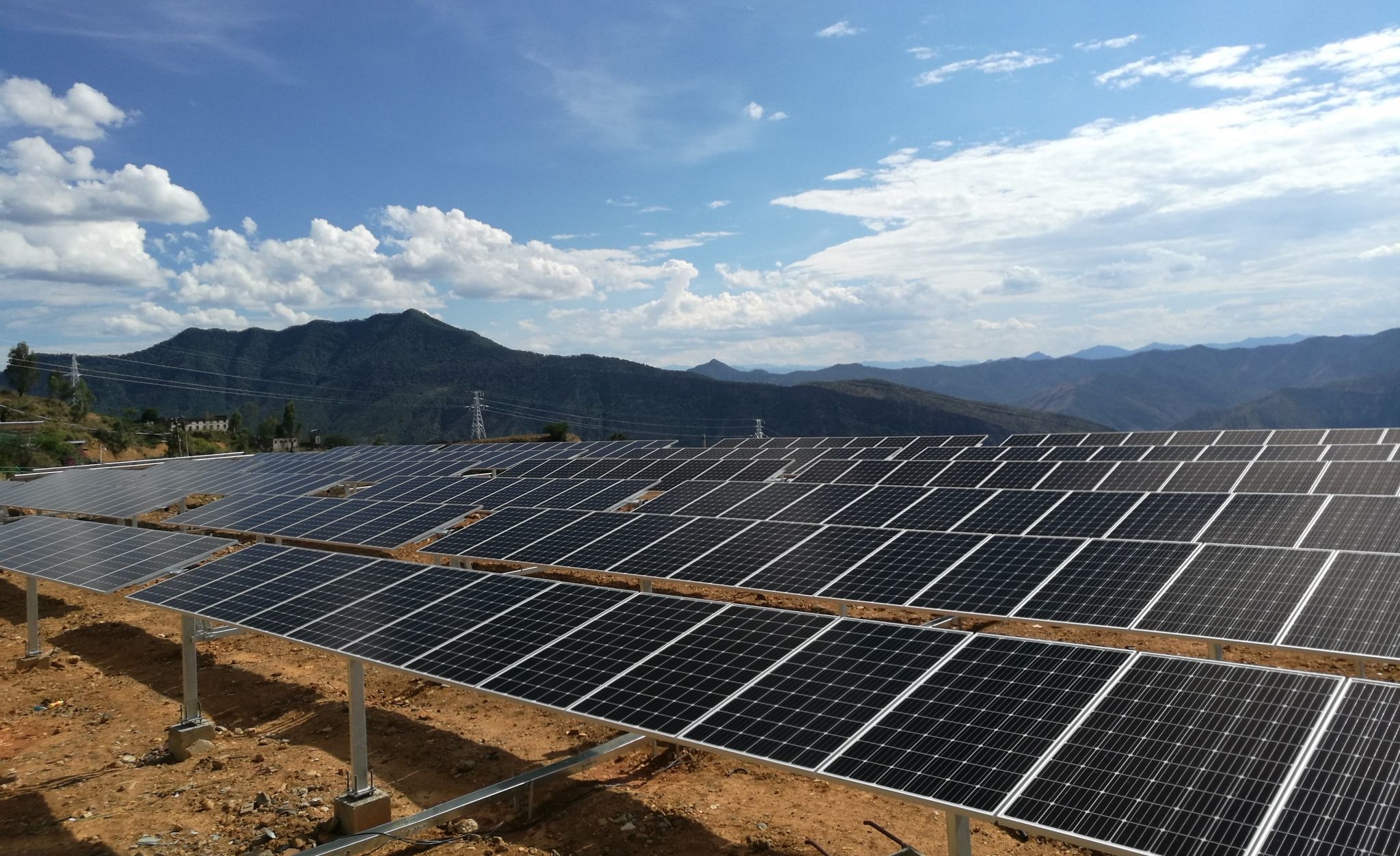

High efficiency solar tracker with slewing drive
Description
1. The structure is simple, the parts are highly pre assembled, and the construction time is saved.
2. Independent driving single row design, no linkage rod, strong terrain adaptability and high plot ratio.
3. Strong wind protection, optional with rain cleaning mode, automatic snow removal mode.
4. IP66 aviation plug connection is adopted, and the system is free of debugging.
5. It can communicate with the inverter in real time, read the output data of the inverter and calculate the best tracking angle.
6. Photovoltaic power generation can be increased by 24-43%.
Advantage:
The structure is simple, the parts are highly pre assembled, and the construction time is saved.
Weight-lifting structure with 5 supporting points, shaped table design combined with a four-link age structure,driven by slewing drive.
Adapt to outdoor environment,working temperature -40~80C°.
Hot-dipped zinc galvanization will extend the work life of the brackets
Independent driving single row design, no linkage rod, strong terrain adaptability and high plot ratio.
Automatic control: The solar tracking system will provide protection automatically for different weather (rain, snow, high winds, etc. )
| Technical Parameters |
| Product | High efficiency solar tracker with slewing drive |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 24VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Structure Material | Hot dipped galvanized/Pre-galvanized steel |
| Power Supply | Powered by PV strings,back-up lithium battery |
| Module Supported | All commercially available modules |
| Operation Temperature | -30℃ - 60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Night Position | Yes |
About Good Future Solar
Good future solar has a professional management team, we have gains rich experiences on the solar power generation, and the designing, manufacturing, commissioning of the single axis tracking system. Our company always values customer’s needs as the highest priority, ready to provides technical support to our customers at any time, to solve their problems in the operation of PV power plant and solar tracking system. With the mission of developing clean energy and protecting the environment, we believe that through close cooperation with domestic and foreign customers, we will continue to innovate in technology and management, and create a bright future of clean energy!
