Advanced technology 50kW single axis solar tracking systems solar tracker
Description

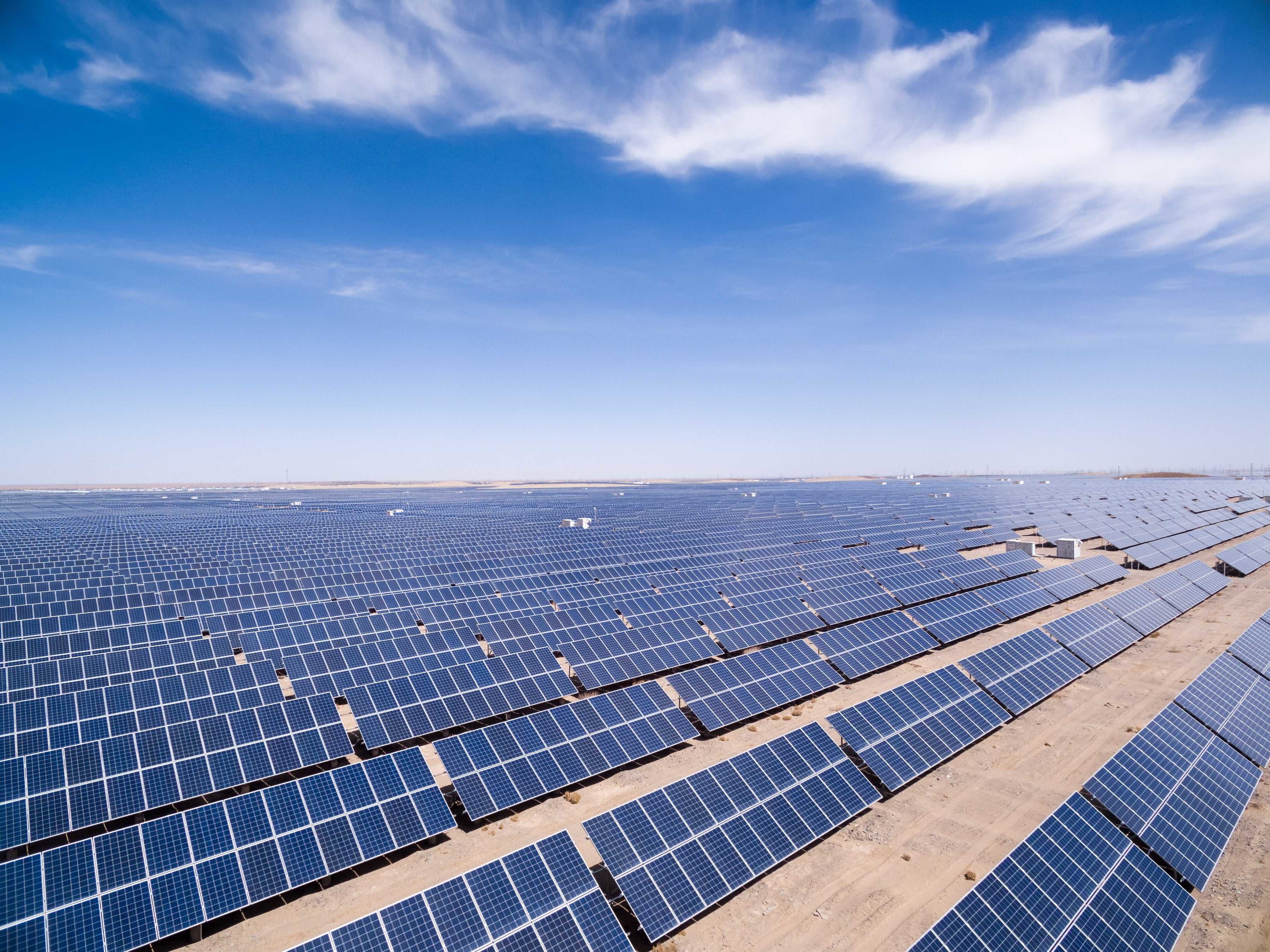

Horizontal single axis tracking system implements distributed actuation architecture, enabling each row to be independently controlled by its own motor with the tracking method “Astronomical algorithm + closed-loop control”. making the system accurate and reliable,real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
The system is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).
Advantage:
1.Intelligent feedback
The controller adopts the inclination sensor of the international brand. Real-time closed-loop feedback tracks the tracking angle of the bracket, fully automatic tracking, without manual intervention.
2. Night reset function
At night, the components are restored to the initial maximum wind resistance state, and the errors caused by the day's operation are eliminated to ensure the accuracy of the entire tracking system;
3. Backtracking function
Reduces shading and maximizes power generation;
4.Information collection function
Real-time acquisition of component tilt Angle; Real-time acquisition of weather conditions, coordinate position, altitude, time and other information;
| Technical Parameters |
| Product | Advanced technology 50kW single axis solar tracking systems solar tracker |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 24VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Structure Material | Hot dipped galvanized/Pre-galvanized steel |
| Power Supply | Powered by PV strings,back-up lithium battery |
| Module Supported | All commercially available modules |
| Operation Temperature | -30℃ - 60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Night Position | Yes |
About Good Future Solar
Good future solar has a professional management team, we have gains rich experiences on the solar power generation, and the designing, manufacturing, commissioning of the single axis tracking system. Our company always values customer’s needs as the highest priority, ready to provides technical support to our customers at any time, to solve their problems in the operation of PV power plant and solar tracking system. With the mission of developing clean energy and protecting the environment, we believe that through close cooperation with domestic and foreign customers, we will continue to innovate in technology and management, and create a bright future of clean energy!
