Latest Solar Sun Tracker Lubrication Free
Working principle:
Horizontal single solar sun tracker system means that PV modules are mounted on a horizontal axis and track the sun in the east-west direction along the horizontal axis.
Solar sun tracker adopts the mode of "astronomical algorithm + closed-loop control" to automatically track the position of the sun and improve the overall power generation of the PV power station system.
In traditional fixed mount plants, the power output follows a bell curve during the day, it gradually increases until peaking at noon, then start to decrease. However, in single axis solar plants, we get the maximum power from early morning and this output is maintained until late afternoon. Hence, the performance increase of approximately 25% as compared to the fixed PV installation.
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Functions:
1. Equipped with GPS to Guarantee the Accuracy of Time
High weather resistance contributes to safe and stable operation between -40℃-70℃. The excellent electromagnetic compatibility design makes the system stable and reliable.
2. Remote Communication, Group Control for Multi-Equipment
Automatically identify the failure, with automatic self-protection and alarm; Quadruple over-current protection ensures the safety of the whole system
3. Customized System Configuration
It can be designed according to customer’s specific requirement.
Advantage:
1) Power generation efficiency increased by 15%~25%.
2) Simple structure, easy in installation and self correction.
3) Adopting advanced famous brand components in inclinometer, electric parts.
4) The tracker could adjusts solar panels into horizontal when meeting strong wind.
5) Adapt to outdoor environment,working temperature -40~70C°.
6) Highly automatic and intelligent, no pollution
7) Hot-dip galvanized steel will extend the work life of the brackets, 25 years service life .
Technical Parameters of Latest Solar Sun Tracker Lubrication Free
About us:
Good Future Solar is a high-tech company in the clean energy industry, registered in China, address: Zhengzhou East New District, Henan Province, China. Our company is committed to provide the solar products of high reliability with competitive price to our domestic and foreign customers. Strive to build our brand in terms of leading technology, high quality and efficient service.
Product Tags:
|
|

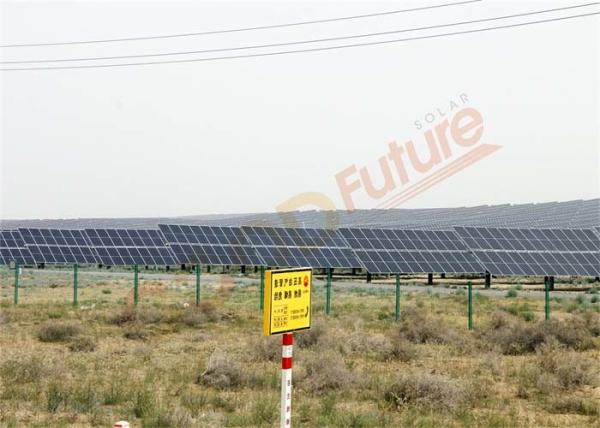

90 Modules Solar Sun Tracker Images
|
