Cost Effective Smart Solar Tracking System
What we have?
Solar tracker, a system that positions an object at an angle relative to the Sun. The most-common applications for solar trackers are positioning photovoltaic (PV) panels (solar panels) so that they remain perpendicular to the Sun’s rays and positioning space telescopes so that they can determine the Sun’s direction. PV solar trackers adjust the direction that a solar panel is facing according to the position of the Sun in the sky. By keeping the panel perpendicular to the Sun, more sunlight strikes the solar panel, less light is reflected, and more energy is absorbed. That energy can be converted into power.
Who we are?
Good Future Solar is a professional manufacture and supplier which is specialized in research development and production of solar related products. As a leading company in solar industry, Good Future Solar still keeps investing a lot of time and energy in product development, all of our products such as single axis solar tracking system and tacker system controller are comply with international quality standards, our clients give highly affirmation to our products and service throughout all the world.
What is a solar tracker?
Trackers direct solar panels or modules toward the sun. These devices change their orientation throughout the day to follow the sun’s path to maximize energy capture.
In photovoltaic systems, trackers help minimize the angle of incidence (the angle that a ray of light makes with a line perpendicular to the surface) between the incoming light and the panel, which increases the amount of energy the installation produces. Concentrated solar photovoltaics and concentrated solar thermal have optics that directly accept sunlight, so trackers must be angled correctly to collect energy. All concentrated solar systems have trackers because the systems do not produce energy unless directed correctly toward the sun.
Parameters of Cost Effective Smart Solar Tracking System
| Technical Parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 24VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Structure Material | Hot dipped galvanized/Pre-galvanized steel |
| Power Supply | Powered by PV strings,back-up lithium battery |
| Module Supported | All commercially available modules |
| Operation Temperature | -30℃ - 60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Night Position | Yes |
Main Features
1. Max terrain tolerance in N-S direction up to 15%.
2. Excellent compatibility with all the solar modules available on the market, framed, frameless and bi-facial.
3. Independent 2P module design, which reduces the quantity of posts and the installation cost significantly.
4. Free obstacles among trackers in N-S direction, easy to maintain and clean.
5. Design configured with one single set of controller, which ensures point-to-point real-time monitoring, easy to detect fault points in time and reduce output loss.
FQA:
Q: The payment method you can accept?
A: Our payment method is different according to different countries and regions.Normally, we accept payment by T/T.
Q: Are you a factory or trading company?
A: Yes,we are factory, supplying OEM/ODM service.
Q: How many day about delivery time?
A: Sample delivered in 3-5 days and Order deliver according to project capacity.
Q:How can I get some samples?
A: We can honored offer you samples according your inquiry.
Product Tags:
|
|

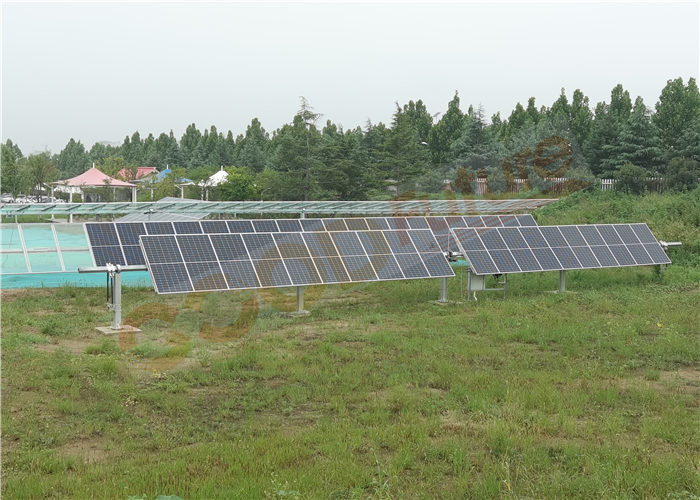

SGS Solar Auto Tracking System Images
|
